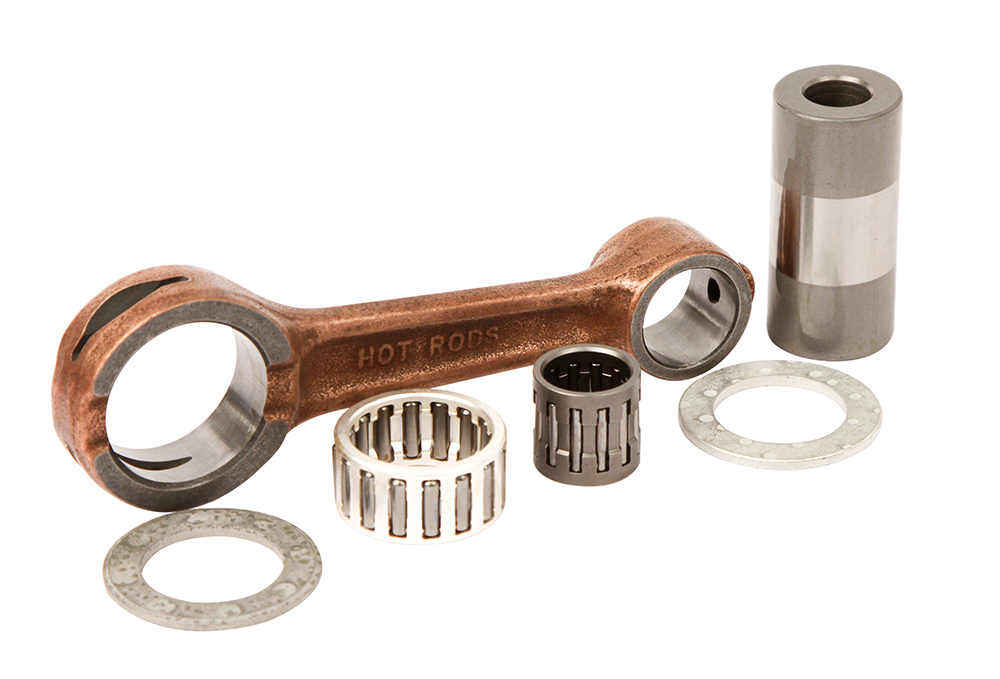

Part Number: 8147
Distributor Part Number(s):Western Powersports #: 421-8147
Parts Unlimited #: CR171
Tucker Rocky #: 162288
Southern #: HR008147
OE Part Number(s):KAWASAKI: 13032-1230
SUZUKI: K1303-21230
For Models:1998-2017 Kawasaki KX 100
1998-2000 Kawasaki KX 80
2001-2017 Kawasaki KX 85
2003-2003 Suzuki RM 100
Technical Specifications:Big End Bearing (mm): 22x28x14
Big End Bore (mm): 28.00
Big End Width (mm): 13.98
Center To Center (mm): 92.00
Pin Diameter (mm): 22.00
Pin Length (mm): 46.40
Small End Bearing (mm): 14x18x17.2
Small End Bore (mm): 18.00
Small End Width (mm): 15.96
Washer Thickness (mm): 2
Pasuje do :- Kawasaki KX 85 A KX085A, 2001r.
- Kawasaki KX 85 A KX085A, 2002r.
- Kawasaki KX 85 A KX085A, 2003r.
- Kawasaki KX 85 A KX085A, 2004r.
- Kawasaki KX 85 A KX085A, 2005r.
- Kawasaki KX 85 A KX085A, 2006r.
- Kawasaki KX 85 A KX085A, 2007r.
- Kawasaki KX 85 A KX085A, 2008r.
- Kawasaki KX 85 A KX085A, 2009r.
